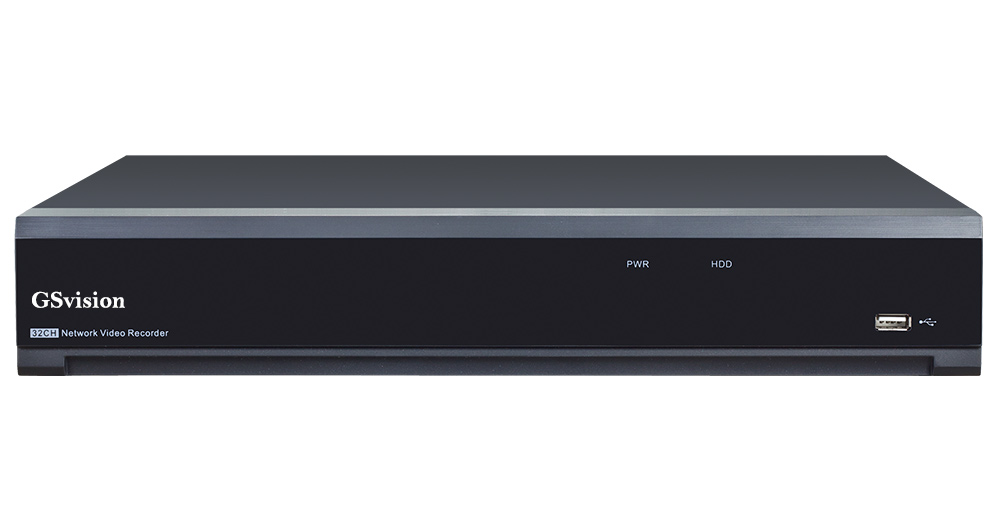

32 Channel Network Video Recorder
| 32 Channel Input Network Video Recorder |
| Support 8 Megapixels Resolution Recording |
| H.265 Video Compression |
| Accurate Retrieval, Instant Playback |
| Third-Party IP Cameras Supported with ONVIF Conformance |
| 8 SATA HDD up to 64TB |
| Support for P2P, UPnP, NTP, DHCP, PPPoE |
| Support for Mobile Client Access |
| Support Raid |
| Model | GS-N5032-R |
| Recording Bandwidth | Max 320Mbps |
| Recording Resolution | 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Display Split | 1/4/6/8/9/10/13/14/16/17/19/22/25/32/36 |
| Video Compression | H.265/H.264 |
| Live/Playback Performance | 4K:4ch realtime 4MP:8ch realtime 3MP:10ch realtime 2MP:16ch realtime |
| Output Interface | 1 HDMI (up to 4K), 1 VGA |
| Display Resolution | 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 2560*1440, 3840*2160 |
| Alarm Input/Out | 16ch In / 4ch Out |
| Ethernet | RJ-45 port (1000M） |
| Smart Phone | iOS, Android |
| Internal HDD | 8 SATA HDDs, each HDD up to 8TB |
| RS485 | Yes |
| e-Sata | Yes |
| Line In | Yes |
| USB | 1x3.0 USB for backup/upgrade, 2x 2.0 USB for mouse |
| ONVIF | Yes |
| RAID | RAID 0/1/3/5/10/JBOD/CLONE |
| Power Consumption (no hard disk) | 7.5W |
| Power Consumption (excluding hard disk) | 17.5W |
| Power Supply | AC 110~240V ,PoE Swith :48V |
| Dimension(W×D×H) | 440*460*89mm |
